Machine Shop Facilities

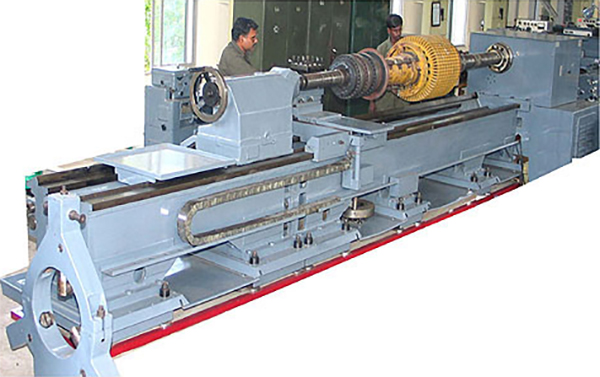

Lathes

Lathes	ABC	SOB
1. HMT L45 Heavy Duty Centre Lathe	5000	900
2. KIRLOSKAR BOMBAY Centre Lathe	5000	1400
3. HMT L50 Heavy Duty Centre Lathe	3000	1000
4. HMT NH26 Centre Lathe	3000	520
5. HMT NH26 Centre Lathe	3000	520
6. HMT Vikram Centre Lathe	1500	440
7. HMT Vikram Centre Lathe	1250	380

ABC - Admit between centres in mm SOB - Swing over bed in mm.

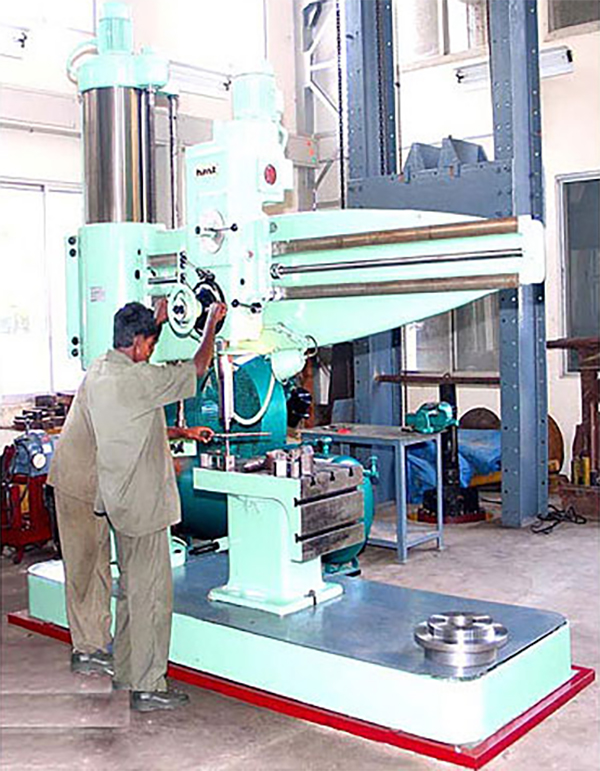

Radial Drilling Machine

Make/Model	HMT / RM65	HMT / RM62
Drilling Capacity	60 mm	60 mm
Drilling Depth	325 mm	325 mm
Maximum Drilling Radius	2350 mm	1500 mm

Hydraulic Surface Grinder

Make/Model	HMT / SFW II
Table Size	250 mm X 1500 mm
Wheel Traverse	320 mm X 1650 mm x 400 mm(Vertical)
Accuracy	Two microns

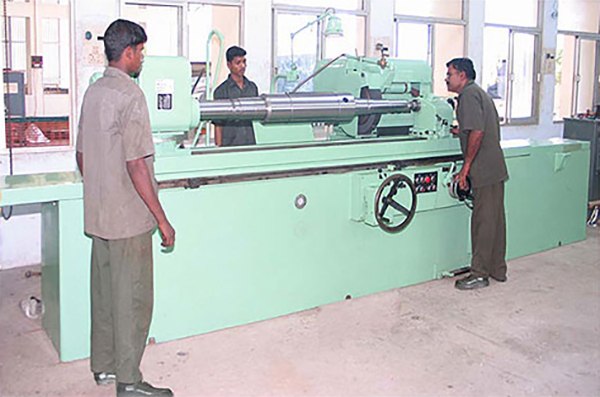

Cylindrical Grinding Machine

Make/Model	HMT / G22/2000 U
Grinding Diameter	250 mm
Swing over Bed	450 mm
Grinding Length	2060 mm
Accuracy	2.50 microns
